Make room for the world's smallest integrated laser head. The Technomark XS Inline needs little space to do its work and provide the heavy-duty Class 4 laser action you need to mark your most rugged materials. This high-quality solution can find a home on any production line, integrating easily into your existing operations. Find the answer to Industry 4.0 requirements and order your new marking solution today.

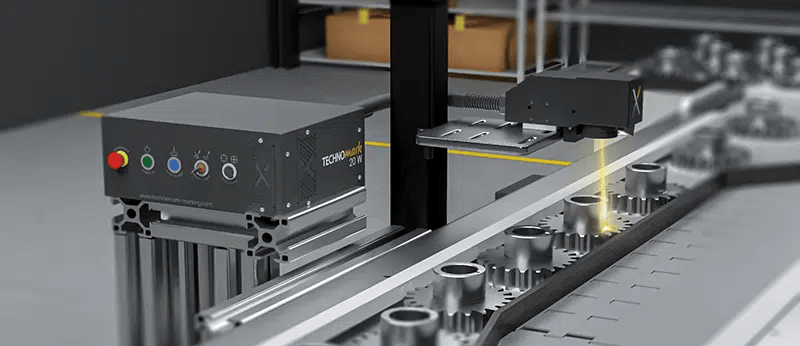

Introducing the Technomark XS Inline
The XS Inline by Technomark was developed for comprehensive integration in facilities, small and large. Whatever space you have, this ultra-compact equipment will fit and deliver:
Multi-position marking: The XS Inline features three fixing faces, enabling 360-degree marking on products of every size. You can also choose between two window sizes to suit your necessary focal length.
Robust marking materials: This solution is one of the smallest and most lightweight marking options on the market, thanks to its aluminum construction, designed for the most demanding working environments.
Read and verify functions: As you mark every product, XS Inline will automatically verify legibility, reducing errors and ensuring mark effectiveness for coding and scanning purposes.
PC and stand-alone operations: Connect XS Inline with the tools you use or none at all. Use network connections, Ethernet and accessory inputs/outputs to enhance or transform your operations.
Continuous operation capabilities:XS Inline was designed for 24/7 continuous operation. When your solutions can keep up with you, productivity and profitability can soar.
Integration Capabilities For Any Setup
XS Inline is made to meet any facility marking needs, from alphanumeric and timestamp marking to logos, barcodes and 2D datamatrixes. It further meets your requirements through:

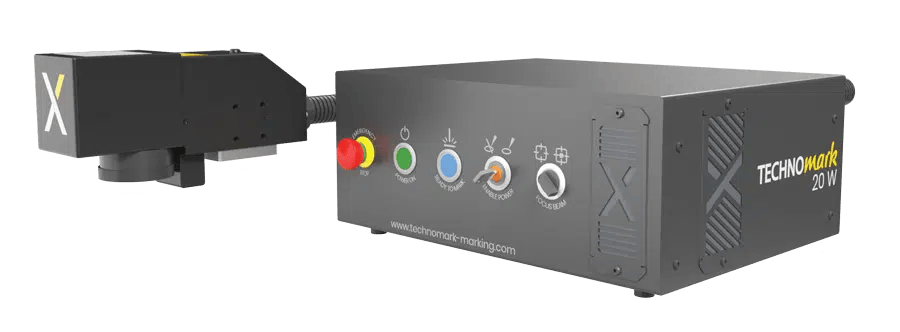

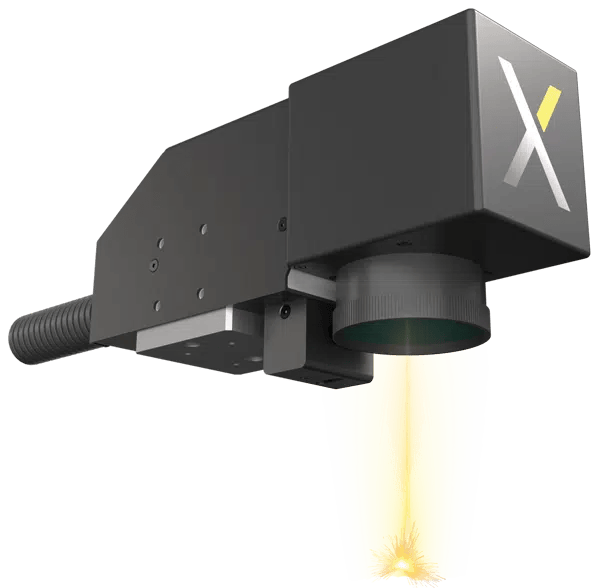

Minimal space use:The Class 4 XS Inline system measures in at a compact 366 mm x 324 mm x 152 mm with laser measurements of 255 mm x 76 mm x 121 mm.
Connectivity your way:The system features eight inputs and outputs, three Ethernet ports, motorized D-axis or Z-axis connections and an eight-pin terminal block so you can connect and share data any way you need to.
Applications of the Class 4 Laser XS Inline

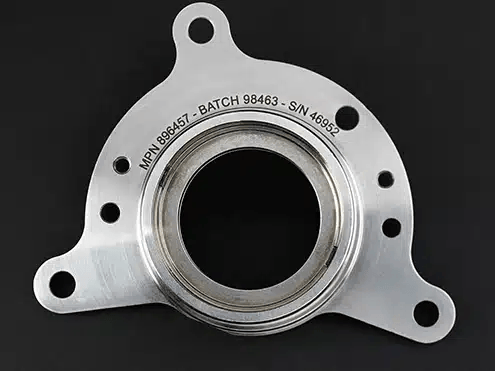

Technomark's XS Inline was created for use in plastic and metal marking applications. Use its powerful fiber laser technology to permanently mark any of these materials in 20-30 seconds:
- Steel
- Stainless steel
- Aluminum
- Brass
- Titanium
- Silver
- Bronze
- PVC
- Polyamide
- Polycarbonate
- Polyethylene
- Polypropylene
- ABS
- Acrylic
This is a non-exhaustive list of suitable applications. Every material should be evaluated and confirmed suitable for marking prior to use with the XS Inline.
Find Implementation Support at Marvel Marking Products
If the Technomark XS Inline is the right solution for your applications, Marvel Marking Products is here to help. We support our clients through every stage of the buying process so they can feel confident in every industry purchase.
Our products have helped companies nationwide develop exceptional products since 1969, and with partners like Technomark, we know you will find what you need in our selection. Request your quote or learn more about the XS Inline today.
